How To Choose Intraoral Photography Mirrors

In orthodontic treatment, dental examination, and case documentation, intraoral photography mirrors are commonly used clinical accessories.

They help clinicians view areas that are difficult to see directly and are also used for occlusal, buccal, and lingual intraoral photographs. For clinics, distributors, and purchasing teams, choosing the right mirror is not only about shape and size. Mirror material, reflection quality, durability, safety, and manufacturing process should all be considered.

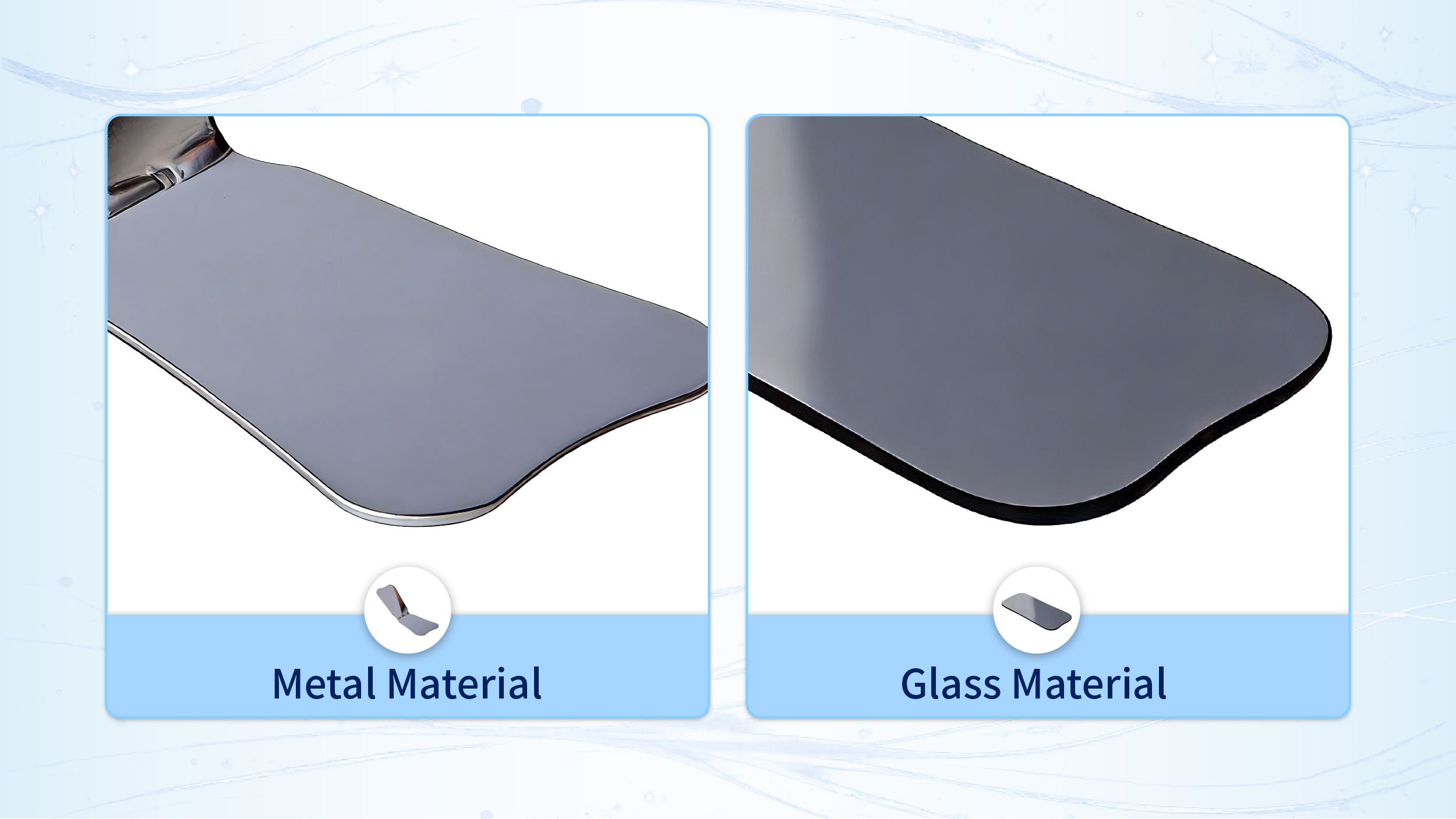

The two common options are glass mirrors and stainless steel mirrors. Both can be used for intraoral examination and clinical photography, but they differ in handling, production process, durability, and suitable applications.

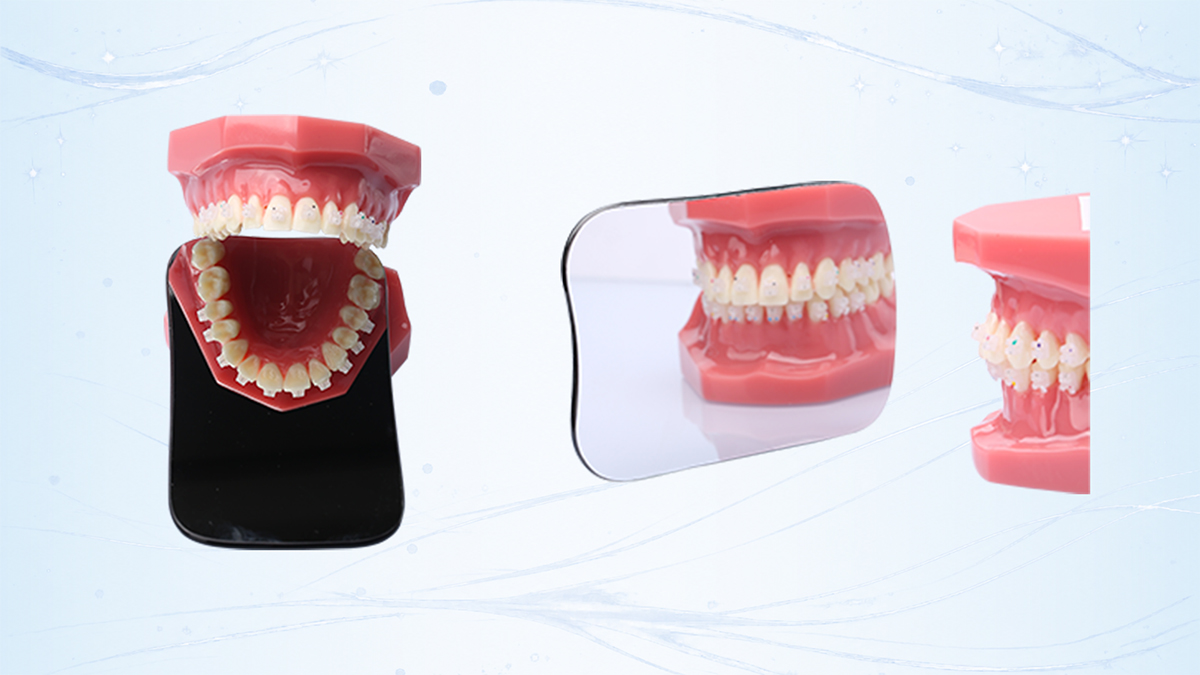

1. Glass Mirrors: Clear Reflection for High-Quality Intraoral Photography

Glass mirrors are made from refined glass with a smooth and flat surface. Our glass mirrors use a double-layer chrome-coated reflective surface, designed to provide bright and stable reflection for intraoral observation and photography.

1.1 From the Customer’s Perspective

One of the main advantages of glass mirrors is high image flatness.

Because the glass substrate can maintain a very flat surface, the reflection is usually more stable and natural. Even near the edge of the mirror, glass mirrors are less likely to distort the reflected image. This helps reduce the risk of visual misjudgment caused by image deformation.

This is especially important for orthodontic case photography. When taking occlusal views, arch alignment photos, and before-and-after treatment records, clinicians often need a mirror that can reproduce the intraoral scene as accurately as possible. In these applications, glass mirrors are well suited for clear, natural, and close-to-true reflection.

1.2 From the Manufacturer’s Perspective

From a manufacturing point of view, glass mirrors have a relatively clear production path. The material cost is usually easier to control, and the manufacturing process is generally more direct compared with stainless steel mirrors.

Glass is also easier to process into consistent shapes. For batch production, glass mirrors can offer advantages in cost control, shape consistency, processing efficiency, and stable specification management.

For buyers who need a cost-effective mirror with good photographic performance, glass mirrors can be a practical and reliable option.

1.3 Limitations of Glass Mirrors

The main limitation of glass mirrors is breakage risk.

Even when tempered glass is used, the mirror still needs to be handled carefully during use, cleaning, sterilization, and transportation. If the mirror edge is chipped, cracked, or damaged, it should not be used again.

Once broken, glass fragments can be difficult to clean and may create a scratching or injury risk. For this reason, glass mirrors are better suited for users who prioritize image clarity, photographic quality, and accurate visual reproduction, and who can manage the mirror with proper care.

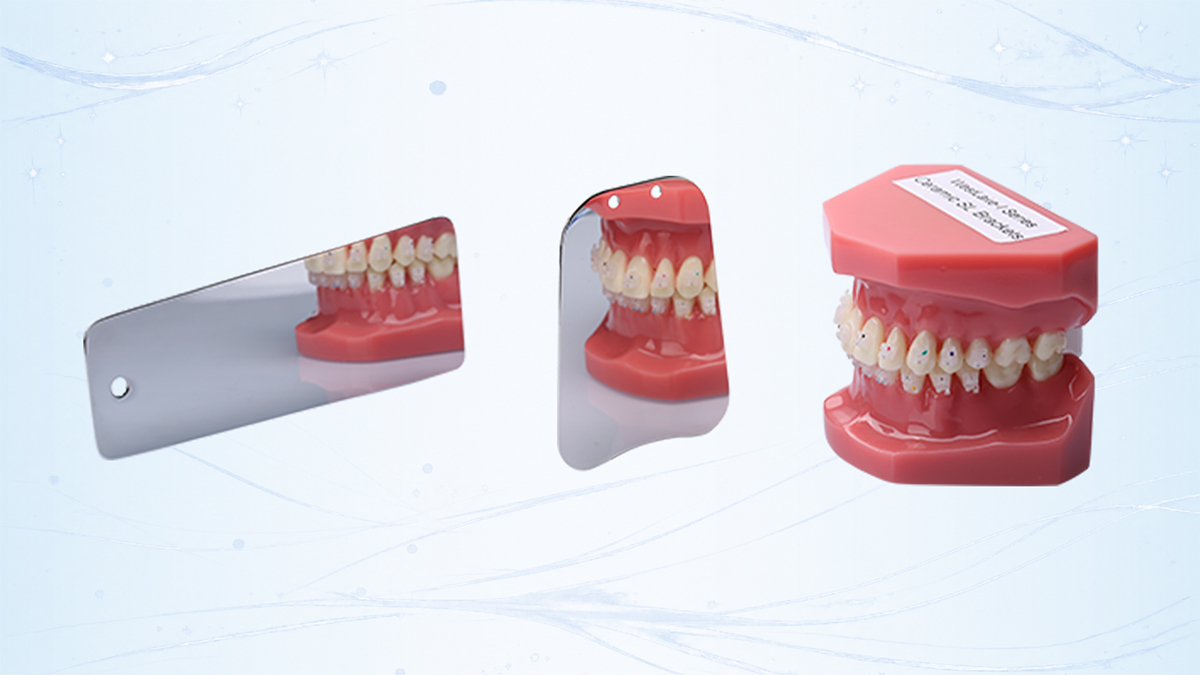

2. Stainless Steel Mirrors: Durable, Safe, and Suitable for High-Frequency Clinical Use

Stainless steel mirrors are usually made from 304 stainless steel. Through cutting, forming, grinding, polishing, and chrome-coated surface finishing, the metal surface is processed into a reflective mirror surface suitable for intraoral observation and photography.

2.1 From the Customer’s Perspective

The biggest advantage of stainless steel mirrors is breakage resistance.

For clinics with frequent daily use, this is highly important. Stainless steel mirrors are more durable during handling, cleaning, sterilization, and transportation. They do not carry the same breakage risk as glass mirrors when dropped or impacted.

In clinical use, stainless steel mirrors also provide a stronger sense of safety. This can be especially valuable for pediatric patients, patients with limited cooperation, or high-turnover clinical environments where instruments are used repeatedly throughout the day.

2.2 From the Manufacturer’s Perspective

From a manufacturing perspective, stainless steel mirrors rely heavily on surface finishing.

Raw stainless steel does not naturally have a mirror-like reflective surface. It needs multiple steps of grinding, polishing, and chrome-coated finishing before it can deliver a suitable reflection for intraoral use.

For curved edges, rounded corners, and special mirror shapes, the factory must carefully control polishing uniformity and surface flatness. Overall, the production process for stainless steel mirrors is usually more complex than that of glass mirrors, and the consistency of surface treatment is more difficult to manage.

However, stainless steel offers better structural strength. It is not easy to break, which makes it suitable for product positioning focused on long-term durability and clinical safety.

2.3 Limitations of Stainless Steel Mirrors

Stainless steel mirrors also have some limitations in appearance and reflection.

First, fine scratches may appear on the mirror surface after long-term use. These scratches may not immediately affect basic observation, but they can reduce the visual appearance of the mirror and may influence image quality during photography.

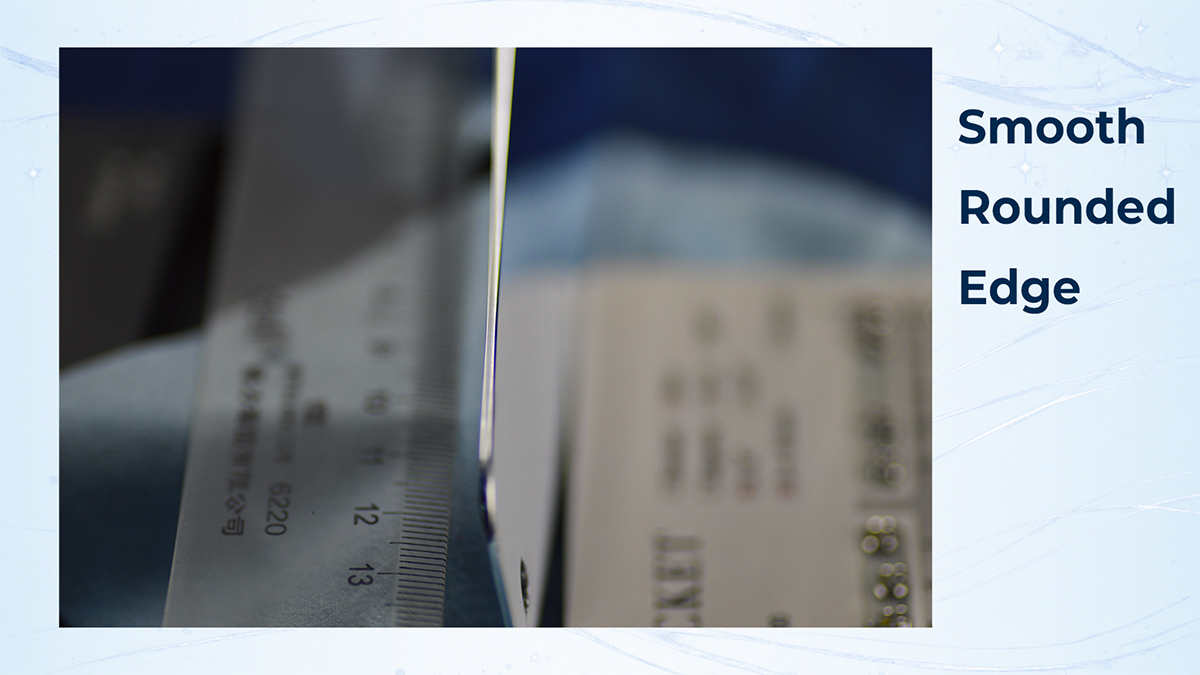

Second, a very small area near the rounded edge may show slight reflection distortion. For highly demanding case photography, especially when accurate image reproduction is required, this should be considered in advance.

In addition, some multifunctional stainless steel mirrors may have two small holes in the central area, while some single-function mirrors may have two small holes near the bottom. These holes are usually related to the production and surface coating process, such as fixture holding during surface treatment. They do not affect the basic function of the mirror, but they may slightly affect the overall visual completeness of the mirror surface.

Another detail is patient comfort. Some patients may be sensitive to the sound produced when a metal mirror touches the teeth. In these cases, clinicians may need to operate more gently or choose a mirror type that is more acceptable to the patient.

For these reasons, stainless steel mirrors are better suited for applications that prioritize safety, durability, repeated use, and high-frequency clinical handling.

3. What Clinical Photography Guidelines Suggest

In clinical photography resources, intraoral mirrors are usually discussed in relation to image quality, standardization, and photographic technique, rather than as a simple material comparison between glass and stainless steel.

In orthodontic photography, intraoral images are an important part of case documentation. The Institute of Medical Illustrators’ orthodontic photography guidance emphasizes the importance of standardized clinical photography for recording and monitoring treatment. It also describes the use of mirrors for occlusal views, where the mirror and camera angle are controlled to obtain a standardized image.

This shows that intraoral mirrors are not only used to “see better.” They also affect the completeness, repeatability, and long-term value of clinical records.

For clinicians, if the main purpose is case documentation, treatment comparison, or presentation-quality photography, mirror clarity, surface flatness, and reflection stability are important.

For clinics and distributors, if the main focus is daily examination, frequent clinical use, and breakage resistance, the practical advantages of stainless steel mirrors are also clear.

Therefore, choosing an intraoral mirror is not only a material decision. It is a matter of matching the mirror type with the intended clinical use.

4. Practical Selection Guide: Glass Mirrors vs. Stainless Steel Mirrors

4.1 Choose Glass Mirrors if the Customer Prioritizes

High-quality intraoral photography: Glass mirrors provide better surface flatness and are well suited for occlusal views, arch alignment photos, and before-and-after treatment records. Accurate reflection: The double-layer chrome-coated surface helps create a clear and stable reflection for intraoral photography. Better edge image stability: Glass mirrors are less likely to create noticeable distortion near the edge, making them suitable for users who require accurate image reproduction. Cost and batch purchasing control: From a manufacturing and sourcing perspective, the glass mirror production process is more direct and easier to control, which can be helpful for markets that value stable specifications and cost efficiency.

4.2 Choose Stainless Steel Mirrors if the Customer Prioritizes

· Breakage resistance: Stainless steel mirrors are made from metal and do not break like glass mirrors when dropped or impacted.

· Safety and durability: They are better suited for frequent handling, transportation, sterilization cycles, and daily clinical operation.

· Practical clinical handling: In pediatric cases, less cooperative patients, or high-turnover clinical settings, stainless steel mirrors offer a stronger safety advantage.

· Long service life: Although fine scratches may appear over time, the overall structure is stronger and more suitable for buyers who prioritize durability.

4.3 Recommendation for Distributors and Purchasing Teams

For distributors, glass mirrors and stainless steel mirrors should not be treated as direct replacements for each other. A more practical product portfolio is: glass mirrors for high-quality photographic records, and stainless steel mirrors for durable daily clinical use.
