How to Choose Orthodontic Mini Screws: Stainless Steel vs. Titanium Alloy

Orthodontic mini screws, also known as orthodontic mini-implants or temporary anchorage devices (TADs), are widely used to provide temporary anchorage during orthodontic treatment.

For clinics, distributors, and purchasing teams, selecting mini screws is not only about size. Material, diameter, thread design, insertion feel, and mechanical behavior can all influence the overall clinical handling and product experience.

The two common material options are stainless steel and titanium alloy. Both materials can be used for orthodontic temporary anchorage. There is no single material that is suitable for every case. The better choice depends on the intended application, product design, and customer preference.

01. Stainless Steel Mini Screws: Better Toughness and More Flexibility for Fine-Diameter Designs（→check here）

One key feature of stainless steel mini screws is good toughness.

When exposed to excessive force, stainless steel is generally more likely to bend or deform before it fractures. For this reason, stainless steel may offer a more forgiving mechanical response in some small-diameter designs.

Stainless steel is also easier to machine. For mini screws that require a finer diameter, special head design, or customized structure, stainless steel can offer certain manufacturing advantages. This is especially relevant when producing very fine-diameter screws, where stable processing and dimensional control are important.

Of course, stainless steel also has its limitations. It is more prone to deformation under force, especially under high insertion torque, strong lateral force, or repeated loading. The screw body or thread area may be more likely to bend or deform under these conditions.

During insertion, some users may also feel that stainless steel threads are not as rigid or sharp in engagement as titanium alloy threads. In dense bone, or when the insertion angle is not well controlled, stainless steel mini screws may be more likely to experience thread slipping or deformation.

Therefore, stainless steel mini screws should not simply be viewed as a “lower-end” option. Their advantages lie in toughness, machinability, and suitability for fine-diameter designs. Their limitations are mainly related to deformation resistance and insertion rigidity, which may not be as strong as some titanium alloy options.

02. Titanium Alloy Mini Screws: Stable Insertion Feel and Strong Market Acceptance（→check here）

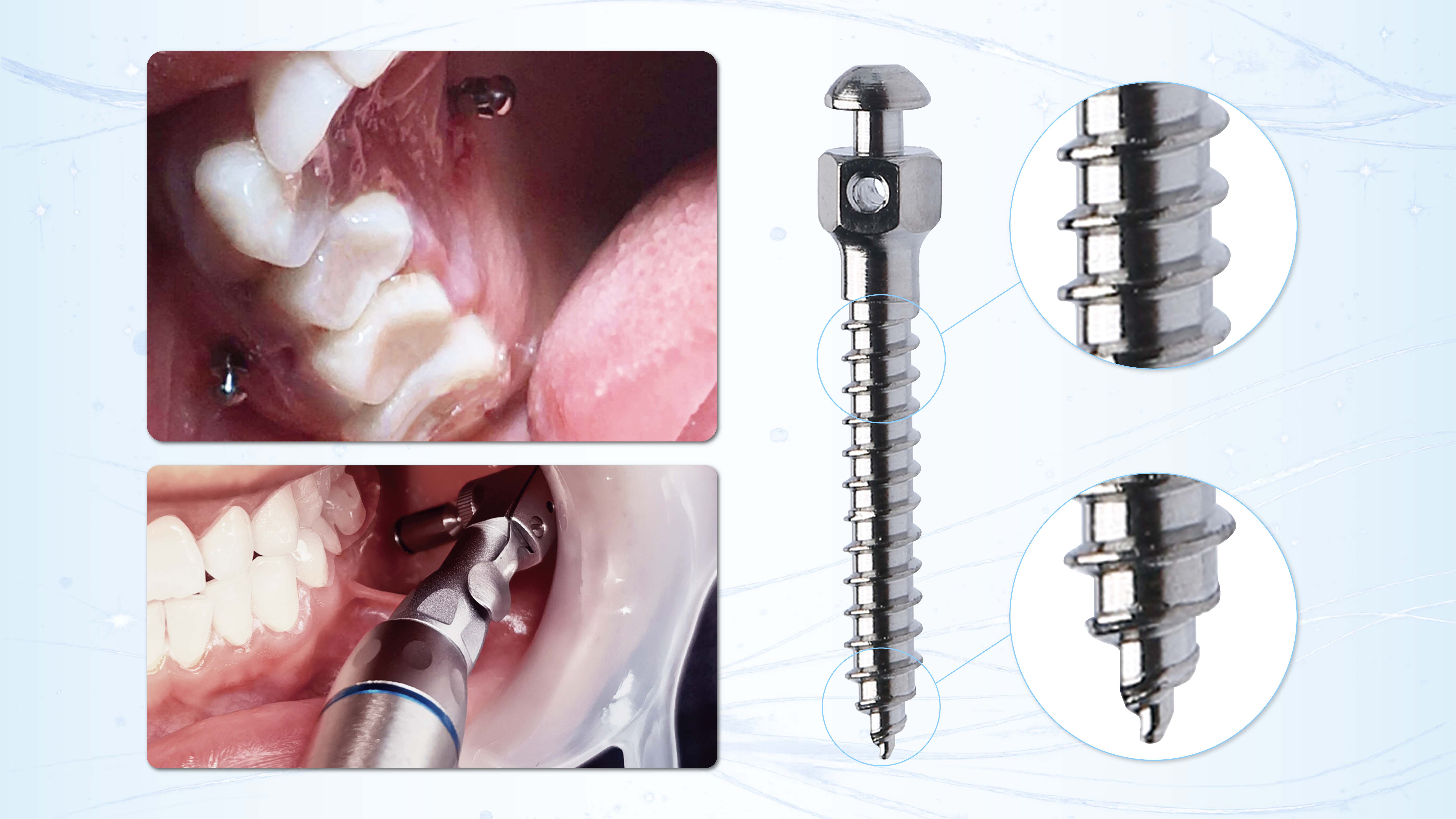

Titanium alloy mini screws are widely used in many orthodontic anchorage systems.

Many international orthodontic mini screw systems highlight titanium alloy for its biocompatibility, stability, self-drilling thread design, and primary stability. In purchasing and product promotion, titanium alloy is also widely accepted as a mainstream material in many markets.

The advantages of titanium alloy mini screws are usually reflected in several areas. First, the screw body is lightweight, which can provide a stable and clear handling feel during placement. Second, titanium alloy generally offers good resistance to deformation, helping the screw maintain its form during insertion.

For clinicians, this firmer and more stable insertion feel is one of the main reasons titanium alloy mini screws are well accepted. This is especially true for standard sizes and larger-diameter products, where titanium alloy is often easier to position as a standardized product option.

However, titanium alloy is not risk-free.

Titanium alloy generally has lower ductility than stainless steel. When the applied force exceeds the material limit, it may be more likely to fracture rather than gradually bend. Therefore, in small-diameter designs, high insertion torque situations, dense cortical bone, or cases with an unfavorable insertion angle, proper insertion control is still essential.

In short, titanium alloy is better positioned around stable insertion, deformation resistance, and mainstream market acceptance. However, it should not be promoted as “stronger in every situation.”

03. What Do Clinical and Laboratory Studies Suggest?

Material is an important factor when choosing orthodontic mini screws. However, published studies show that the final performance of a mini screw is not determined by material alone.

A 2014 mechanical and histological study on stainless steel and titanium alloy miniscrew implants found that both materials provided comparable mechanical stability and tissue response. The study concluded that both types were suitable for immediate orthodontic loading.
https://pubmed.ncbi.nlm.nih.gov/24703288/

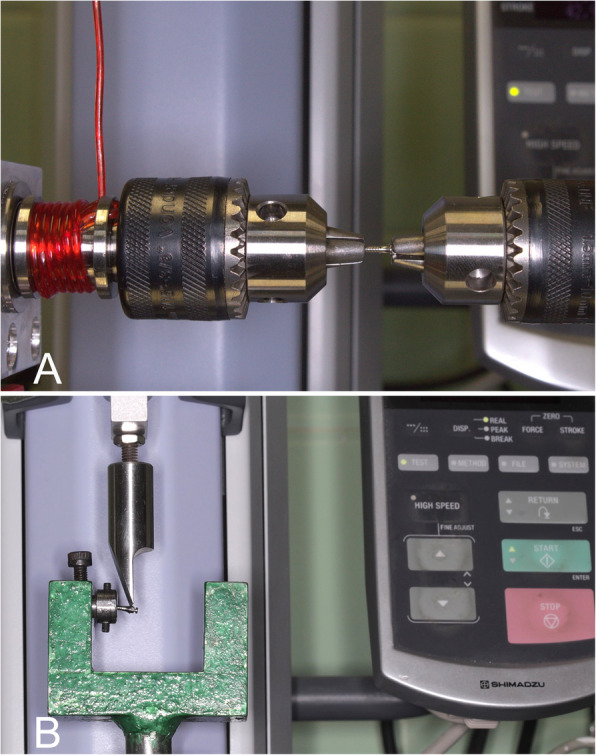

A 2021 standardized laboratory study involving 504 stainless steel and titanium alloy mini-implants reported higher fracture torque and flexural strength in the stainless steel group. The same study also pointed out that screw diameter had a much greater influence on fracture torque than the alloy itself.
https://pubmed.ncbi.nlm.nih.gov/33748887/

（Source: Barros, S. E., Vanz, V., Chiqueto, K., Janson, G., & Ferreira, E. Mechanical strength of stainless steel and titanium alloy mini-implants with different diameters: an experimental laboratory study. Progress in Orthodontics, 22, 9 (2021). Licensed under CC BY 4.0.）

A 2018 bending and fracture test of orthodontic TADs with different diameters showed that 2.0 mm mini screws had significantly higher bending and fracture resistance than 1.5 mm mini screws. Under the same diameter, no significant difference was found between titanium alloy and stainless steel. The study suggested that selecting a larger diameter is generally safer when higher bending and fracture resistance is required.
https://www.mdpi.com/1996-1944/11/7/1138

These findings suggest that material differences can affect insertion feel, deformation tendency, and overload behavior, but material is not the only selection factor. For purchasing teams, it is more practical to evaluate the product together with its specifications, structural design, and intended use, rather than comparing only the material names “stainless steel” and “titanium alloy.”

04. Practical Selection Guide for Stainless Steel and Titanium Alloy Mini Screws

From a material perspective, the difference can be understood in a simple way: stainless steel emphasizes toughness and manufacturing flexibility, while titanium alloy emphasizes insertion feel and deformation resistance.

Stainless steel offers good toughness and is easier to machine, which gives it more design flexibility for fine-diameter products. For small-diameter mini screws or products requiring special structural design, stainless steel can be a practical material choice.

Titanium alloy offers a more stable insertion feel. The screw body is less likely to deform during placement, and the thread engagement often feels clearer and more controlled. For standard sizes, larger-diameter mini screws, or markets that place greater value on clinical handling, titanium alloy is often easier to promote.

When choosing orthodontic mini screws, the better question is not simply: “Which is better, stainless steel or titanium alloy?”

A more practical evaluation should consider: What size range does the customer need? Is the screw intended for routine anchorage or heavier loading? Does the customer value cost, toughness, or insertion feel more? Which material is more accepted in the target market? Is a small diameter or customized structure required?

If the market is more cost-sensitive or requires fine-diameter options and better material toughness, stainless steel mini screws can remain an important product choice.

If the market values mainstream material positioning, smooth insertion, deformation resistance, and a more premium product image, titanium alloy mini screws are usually easier to promote.

For distributors, offering both stainless steel and titanium alloy options can create a more flexible product portfolio. This approach helps serve price-sensitive customers while also meeting the needs of markets that prioritize insertion feel and mainstream material acceptance.

Ultimately, mini screw selection should return to the actual application. For small-diameter or customized designs, stainless steel may be considered for its toughness and manufacturing advantages. For standard sizes and mainstream product promotion, titanium alloy may be preferred for its stable insertion feel and market acceptance. For cases requiring higher bending or fracture resistance, the selection should focus on the appropriate specification and structural design, rather than material name alone.
