Song Series
SINO ORTHO
Song II-R1/2; Song II-M1/2
Monoblock
0.022", 0.018"
MBT, Roth
Conventional
Polycrystalline Ceramic
Twin (Standard)
With Hook
Polycrystalline ceramic
Air express available
Zhejiang, China

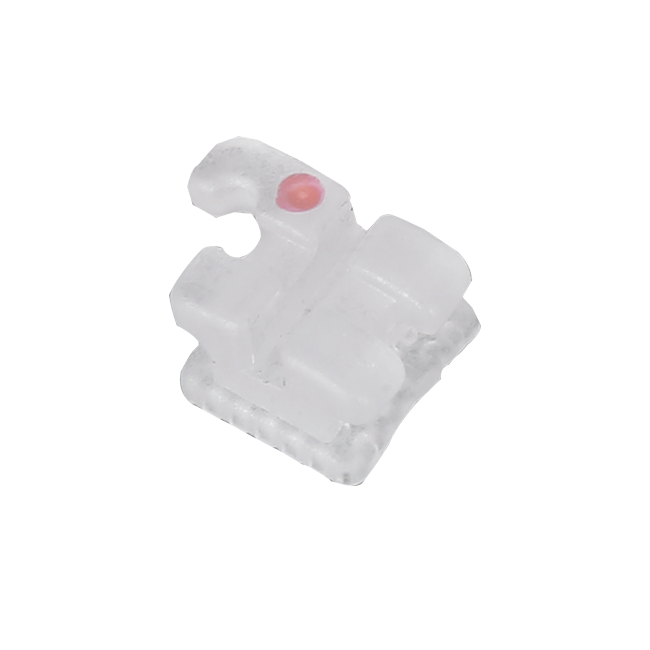

Don't let metal braces hold you back from smiling confidently. Choose our ceramic brackets to enhance your orthodontic experience.
Roth System
Maxillary
| Torque | -7° | -7° | -2° | +8° | +12° | +12° | +8° | -2° | -7° | -7° |
| Tip | 0° | 0° | 10° | 9° | 5° | 5° | 9° | 10° | 0° | 0° |
| In/Out mm | 1.2 | 1.2 | 1.2 | 1.7 | 1.2 | 1.2 | 1.7 | 1.2 | 1.2 | 1.2 |
| Width mm | 3.2 | 3.2 | 3.2 | 3.0 | 3.6 | 3.6 | 3.0 | 3.2 | 3.2 | 3.2 |
Mandibular
| Torque | -22° | -17° | -11° | -1° | -1° | -1° | -1° | -11° | -17° | -22° |
| Tip | 0° | 0° | 7° | 0° | 0° | 0° | 0° | 7° | 0° | 0° |
| In/Out mm | 1.2 | 1.2 | 1.2 | 1.7 | 1.7 | 1.7 | 1.7 | 1.2 | 1.2 | 1.2 |
| Width mm | 3.2 | 3.2 | 3.2 | 2.6 | 2.6 | 2.6 | 2.6 | 3.2 | 3.2 | 3.2 |
| Slot Sizes | Assortments Packs | Quantity | W/H 3 | W/H 345 | ||||||
| 0.018" | 1 Kit | 20PCS | Song II-R11 | Song II-R21 | ||||||
| 0.022" | 1 Kit | 20PCS | Song II-R12 | Song II-R22 | ||||||
MBT System
Maxillary
| Torque | -7° | -7° | -7° | +10° | +17° | +17° | +10° | -7° | -7° | -7° |
| Tip | 0° | 0° | 8° | 8° | 4° | 4° | 8° | 8° | 0° | 0° |
| In/Out mm | 1.1 | 1.1 | 1.1 | 1.4 | 1.2 | 1.2 | 1.4 | 1.1 | 1.1 | 1.1 |
| Width mm | 3.4 | 3.4 | 4.4 | 3.8 | 3.8 | 3.8 | 3.4 | 3.4 | 3.4 | 3.4 |
| Torque | -17° | -12° | -6° | -6° | -6° | -6° | -6° | -6° | -12° | -17° |
| Tip | 2° | 2° | 3° | 3° | 0° | 0° | 0° | 3° | 2° | 2° |
| In/Out mm | 1.1 | 1.1 | 1.1 | 1.3 | 1.3 | 1.3 | 1.3 | 1.1 | 1.1 | 1.1 |
| Width mm | 3.4 | 3.4 | 3.4 | 3.0 | 3.0 | 3.0 | 3.0 | 3.4 | 3.4 | 3.4 |
| Slot Sizes | Assortments Packs | Quantity | W/H 3 | W/H 345 | ||||||
| 0.018" | 1 Kit | 20PCS | Song II-M11 | Song II-M21 | ||||||
| 0.022" | 1 Kit | 20PCS | Song II-M12 | Song II-M22 | ||||||
