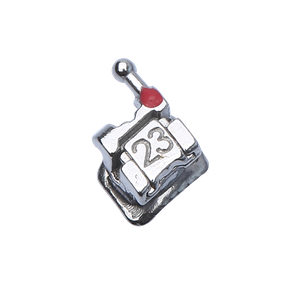

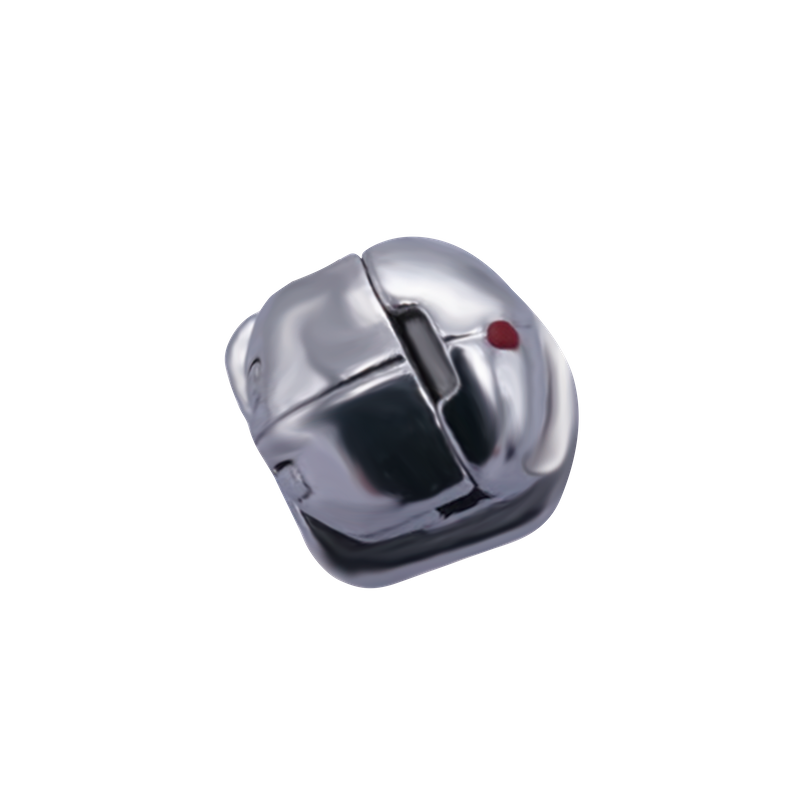

Spherical Self-ligating Brackets

1. Enclosing semi-spherical surface less irritation to soft tissue and less retention of foof and plaque.
2. With force dispersion from semi-spherical surface, only1/20 force impacts on brackets with lower fall-off rate of brackets.
3. Brackets hook on central axis provides correct power for elastic bending .
4. One piece curved base better for bonding .

Availability:

Quantity:



Inquire Add to Basket

Model:
BTL
Brand:
SINO ORTHO

Product Description

Roth System
Maxillary
Maxillary
Torque	-7°	-7°	-2°	+8°	+12°	+12°	+8°	-2°	-7°	-7°
Tip	0°	0°	10°	9°	5°	5°	9°	10°	0°	0°
In/Out mm	0.6	0.6	0.6	0.5	0.45	0.45	0.5	0.6	0.6	0.6
Width mm	3.0	3.0	3.0	2.6	3.2	3.2	2.6	3.0	3.0	3.0
Mandibular
Mandibular
Torque	-22°	-17°	-11°	-1°	-1°	-1°	-1°	-11°	-17°	-22°
Tip	0°	0°	6°	0°	0°	0°	0°	6°	0°	0°
In/Out mm	0.6	0.6	0.6	0.6	0.55	0.55	0.6	0.6	0.6	0.6
Width mm	3.0	3.0	3.0	2.6	2.6	2.6	2.6	3.0	3.0	3.0


Slot Sizes	Assortments Packs		Quantity		No Hook		W/H 3		W/H 345
0.018"	1 Kit		20PCS		BTL-R01		BTL-R11		BTL-R21
0.022"	1 Kit		20PCS		BTL-R02		BTL-R12		BTL-R22

MBT System
Maxillary
Maxillary
Torque	-7°	-7°	-7°	+10°	+17°	+17°	+10°	-7°	-7°	-7°
Tip	0°	0°	8°	8°	4°	4°	8°	8°	0°	0°
In/Out mm	0.6	0.6	0.6	0.5	0.45	0.45	0.5	0.6	0.6	0.6
Width mm	3.0	3.0	3.0	2.6	3.2	3.2	2.6	3.0	3.0	3.0
Mandibular
Mandibular
Torque	-17°	-11°	-6°	-6°	-6°	-6°	-6°	-6°	-11°	-17°
Tip	0°	0°	3°	0°	0°	0°	0°	3°	2°	2°
In/Out mm	0.5	0.5	0.5	0.6	0.5	0.5	0.6	0.5	0.5	0.5
Width mm	3.0	3.0	3.0	2.6	2.6	2.4	2.6	3.0	3.0	3.0


Slot Sizes	Assortments Packs		Quantity		No Hook		W/H 3		W/H 345
0.018"	1 Kit		20PCS		BTL-M01		BTL-M11		BTL-M21
0.022"	1 Kit		20PCS		BTL-M02		BTL-M12		BTL-M22
