Orthodontic Archwire Material Properties and Selection Guide

This table provides a general comparison under similar cross-sectional conditions. Actual force delivery can also be influenced by archwire dimensions, heat treatment, arch form, interbracket span, activation, and intraoral temperature.

In general, NiTi and Cu-NiTi are primarily used for initial alignment. Stainless steel provides stable control during the working stage, while TMA offers greater flexibility for customized bends and precision mechanics.

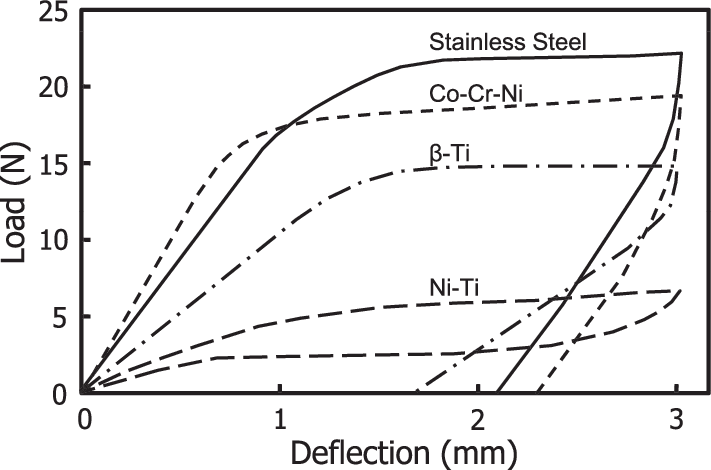

The key advantage of a NiTi archwire is its wide elastic working range and ability to recover its original arch form after considerable deflection. Compared with stainless steel wire of the same dimensions, NiTi usually has lower stiffness. Small round NiTi archwires are therefore widely used during the initial stage of treatment. [1,3]

For cases involving crowding, rotation, or significant tooth displacement, superelastic NiTi can usually be engaged more easily into the bracket slots while delivering light and continuous recovery forces within its working range.

The mechanical behavior of thermal-active NiTi changes with temperature. Some products become more flexible at lower temperatures, making bracket engagement easier. As the wire approaches its designed activation temperature, it gradually recovers its original arch form and delivers corrective forces.

Cu-NiTi, or copper nickel-titanium, is a NiTi-based alloy containing copper. Its main advantage is that copper helps control the phase-transition temperature, supporting more stable temperature response and unloading-force characteristics.

Cu-NiTi archwires are relatively flexible at lower temperatures, which helps with the engagement of displaced teeth. As the archwire reaches its designed activation temperature in the oral environment, it gradually recovers its arch form and delivers corrective forces. Cu-NiTi can therefore be used for initial alignment, leveling, and treatment stages requiring a wide elastic working range.

When selecting among superelastic NiTi, thermal-active NiTi, and Cu-NiTi archwires, orthodontists can consider the required temperature response, archwire dimensions, and intended treatment stage.

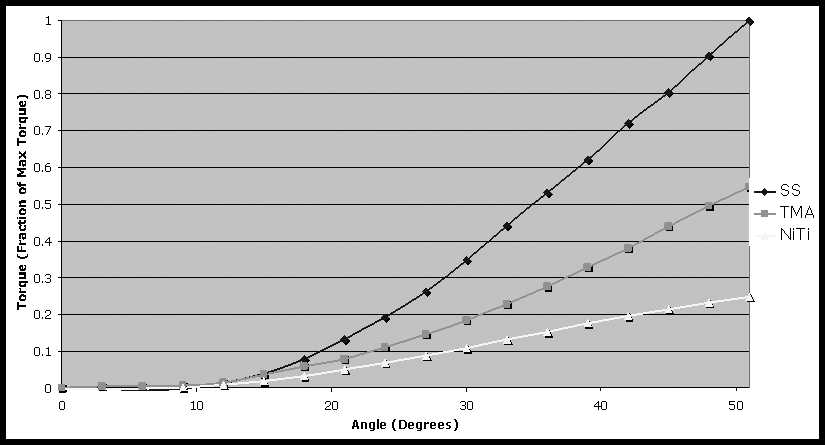

The main advantages of stainless steel orthodontic archwires are high stiffness, excellent formability, and stable three-dimensional control. Once the dental arch has been substantially aligned, rectangular stainless steel archwires are commonly used to increase slot engagement, control torque, close spaces, and perform detailed finishing adjustments. [1]

Sliding mechanics are also influenced by archwire dimensions and bracket-slot geometry. [4] A well-polished stainless steel surface supports efficient sliding mechanics and can be used with different traction and space-closure systems. Its excellent bendability also allows orthodontists to add customized bends and make detailed adjustments according to the treatment plan.

Stainless steel orthodontic archwire is one of the most widely used working wires in fixed orthodontic treatment. It is also an important product category for clinics and orthodontic supply distributors.

TMA is a beta-titanium alloy commonly used in orthodontics and is also known as titanium molybdenum alloy. Conventional TMA has a nominal composition of approximately 77.8% titanium, 11.3% molybdenum, 6.6% zirconium, and 4.3% tin. The exact composition may vary between manufacturers.

Molybdenum helps stabilize the beta-titanium phase, while zirconium and tin are used to adjust the strength, elasticity, and workability of the alloy. Conventional TMA formulations do not contain nickel.

The key advantage of TMA is that it provides lower stiffness than stainless steel of the same dimensions while maintaining high springback and excellent permanent bendability. [7,8] When customized bends are required with a lower stiffness level than stainless steel, TMA provides greater flexibility for mechanical design.

TMA is commonly used during finishing, detailed tooth movement, segmented arch mechanics, and the fabrication of orthodontic springs and loops. [7]

By combining elasticity with excellent formability, TMA archwire provides a specialized alternative to conventional stainless steel working wires.

Which Orthodontic Archwires Should Distributors Stock First?

Distributors that have not yet established local sales data can begin with archwires that cover the widest range of routine clinical applications. Additional dimensions and arch forms can then be introduced according to customer orders and repeat demand.

First Priority: Superelastic NiTi

Superelastic NiTi is generally the most suitable archwire type for a core inventory. It covers a wide range of clinical applications, particularly common small round sizes such as 0.012, 0.014, and 0.016 inches, as well as frequently used rectangular dimensions.

Distributors can begin with upper and lower archwires in the main arch forms, then adjust the size range according to the bracket systems and ordering patterns used by local orthodontists.

Second Priority: Stainless Steel

Stainless steel archwires are frequently used and can form a basic inventory together with superelastic NiTi. Distributors should prioritize commonly used rectangular working and finishing wires for torque control, space closure, and detailed adjustment.

Straight lengths and round stainless steel wires can also be added when customers require laboratory fabrication, customized bends, or segmented applications.

For distributors sourcing wholesale orthodontic wires, superelastic NiTi and stainless steel archwires can serve as the core categories for an initial order. Establishing a stable basic inventory before expanding into additional materials and specifications can support both inventory control and supply efficiency.

Sino Ortho Orthodontic Archwire Options

Sino Ortho supplies a range of orthodontic archwires, including: Superelastic NiTi archwires, Thermal-active NiTi archwires, Cu-NiTi archwires, Stainless steel archwires, TMA / beta-titanium archwires.

Available options include round and rectangular cross-sections, upper and lower archwires, and multiple preformed arch shapes. Standard products are available for online ordering. For bulk purchases, distributor orders, and OEM/ODM orthodontic archwire projects, customers can contact Sino Ortho to confirm dimensions, arch forms, packaging, and documentation requirements.

As an orthodontic archwire manufacturer and supplier based in China, Sino Ortho provides standard archwires, wholesale supply, and OEM/ODM services for clinics, orthodontic distributors, and private-label customers.

References:

[1] Kapila S, Sachdeva R. Mechanical properties and clinical applications of orthodontic wires. American Journal of Orthodontics and Dentofacial Orthopedics. 1989;96(2):100–109. DOI: 10.1016/0889-5406(89)90251-5.

[2] Watanabe E, Stigall G, Elshahawy W, Watanabe I. Deflection load characteristics of laser-welded orthodontic wires. The Angle Orthodontist. 2012;82(4):698–702. DOI: 10.2319/061411-393.1.

[3] Liu C, Wei Z, Jian F, McIntyre G, Millett DT, Lai W, Wang Y. Initial arch wires used in orthodontic treatment with fixed appliances. Cochrane Database of Systematic Reviews. 2024;2:CD007859. DOI: 10.1002/14651858.CD007859.pub5.

[4] Kusy RP, Whitley JQ. Influence of archwire and bracket dimensions on sliding mechanics: derivations and determinations of the critical contact angles for binding. European Journal of Orthodontics. 1999;21(2):199–208. DOI: 10.1093/ejo/21.2.199.

[5] Archambault A, Major TW, Carey JP, Heo G, Badawi H, Major PW. A comparison of torque expression between stainless steel, titanium molybdenum alloy, and copper nickel titanium wires in metallic self-ligating brackets. The Angle Orthodontist. 2010;80(5):884–889. DOI: 10.2319/102809-604.1.

[6] Erratum. The Angle Orthodontist. 2011;81(1):179. DOI: 10.2319/0003-3219-81.1.179.

[7] Burstone CJ, Goldberg AJ. Beta titanium: a new orthodontic alloy. American Journal of Orthodontics. 1980;77(2):121–132. DOI: 10.1016/0002-9416(80)90001-9.

[8] Gurgel JA, Pinzan-Vercelino CRM, Powers JM. Mechanical properties of beta-titanium wires. The Angle Orthodontist. 2011;81(3):478–483. DOI: 10.2319/070510-379.1.

[9] de Castro SM, Moreira R, Braga AC, Ferreira AP, Pollmann MC. Effect of activation and preactivation on the mechanical behavior and neutral position of stainless steel and beta-titanium T-loops. Korean Journal of Orthodontics. 2015;45(4):198–208. DOI: 10.4041/kjod.2015.45.4.198.
